Name: Dart Controls 13DVE
Brand: Dart Controls
SKU: 13DVE
Price: 187.2 USD

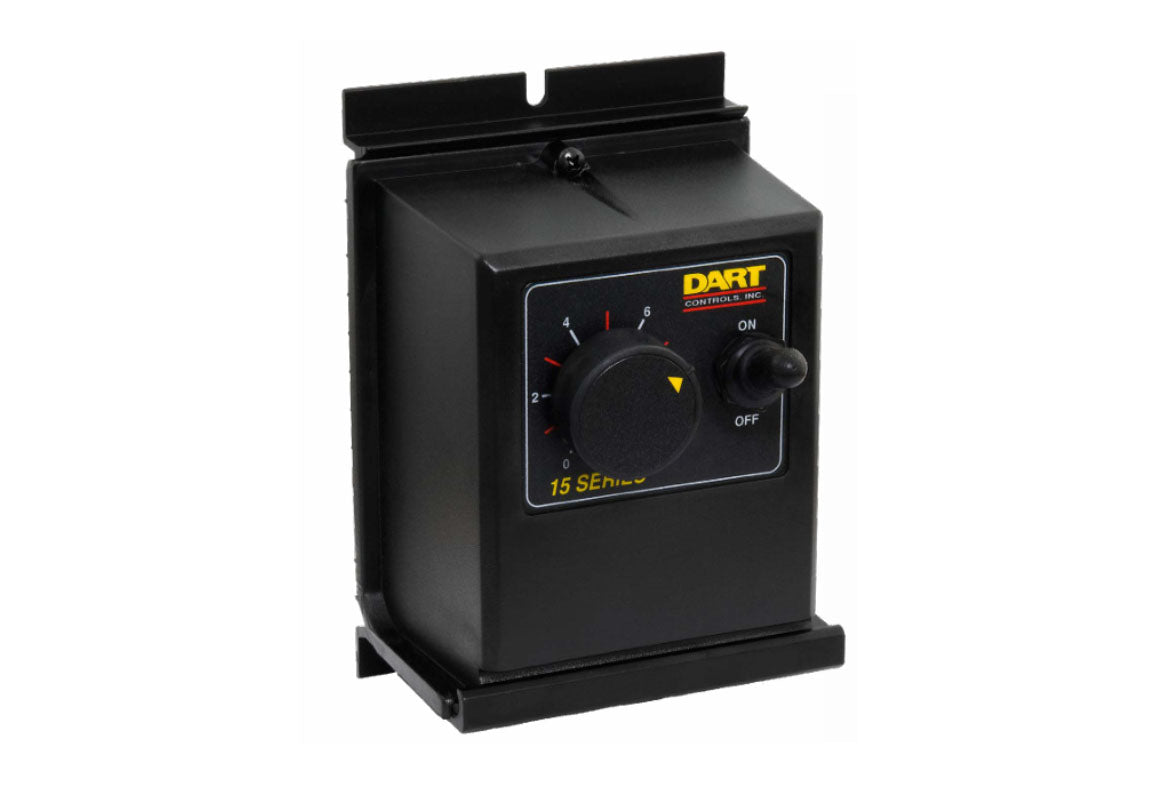

Image may not be representative of actual product.

Have a Question?

A general purpose, economical variable speed control for small DC and universal motor applications featuring: dual input voltages of 12/24 VAC with DC output voltage of 12/24 VDC and current rating of 3 Amps, adjustable trimpot settings, and quick connect terminal pins.

Low voltage enclosed DC motor control for fractional HP motors to 3A. Small SCR Control with NEMA 4/12 enclosure (3DC Amps).

Features:
Dual voltage models of 12/24 VAC or 120/240 VAC input (see chart)
Full wave bridge power supply
Adjustable Min speed
Adjustable Max speed
Adjustable IR compensation
Fixed acceleration
5K ohm speed pot, knob and dial included
25:1 speed range
1% speed regulation
Overload capacity of 200% for 1 minute
Transient voltage protection
AC line fuse (Enclosed)
Power on/off switch and light (Enclosed)

Trimpot Definition and Adjustment Video

Click to download the catalog

Additional Info

Brand	Dart Controls
Component Type	DC Motor Speed Control
Dart Controls Product Series	Dart Controls 15DV
Enclosure Option	Nema 4/12
Horsepower	1/12 HP
Input Voltage	12-24V AC
