Name: Dart Controls DP4-1
Brand: Dart Controls
SKU: DP4-1
Price: 365.6 USD

Image may not be representative of actual product.

Have a Question?

NEW FEATURE: The DP4 Digital Potentiometer now offers a configurable input to lock out set point changes via the front panel. This can add an important level of control for safety or system performance reasons. Driven by another customer input, Dart is always looking to make our products better! -1: Provision for external set of Up/Dn push buttons

A microprocessor based digital potentiometer that will directly replace a conventional 3-wire analog speedpot or motorized speedpot for most AC and DC drives. The desired set speed is entered into the large 1/2 inch LED display through the convenient front-panel interface…and display units are now programmable for virtually any unit of measure. The attractive panel mount unit is easy to install in industry standard 1/8 DIN cut-out dimensions. The electrically isolated common signal permits direct wiring from the unit terminal block to the drive’s potentiometer terminal points. The DP4 offers the same enhanced display options and capabilities featured in our other digital control products, as well as the Universal Power Supply and rugged screw type terminal strip.

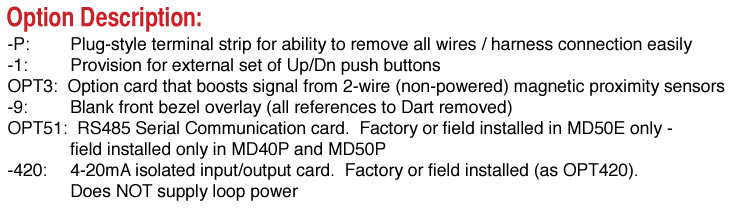

-1: Provision for external set of Up/Dn push buttons

Style: 1/8 DIN PANEL MOUNT
Input: 120/240
Output: 3-wire (to any drive's speed pot circuit)
Field programmable Rate or Time modes
Inhibit function
Jog function
Factory default restore
User-default storage and restore
NEMA 4X Rating (with supplied gasket)
Supports bidirectional connections for regenerative drives

DP4 Digital Potentiometer Video

Click to download the catalog

Additional Info

Brand	Dart Controls
Dart Controls Product Series	Dart Controls DP
Enclosure Option	Nema 4X
Input Voltage	120/240V AC
