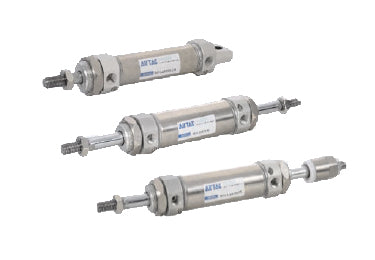

Round body pneumatic cylinder, double acting, stainless steel, 20mm bore, 15 mm stroke, without magnet, Pivot type back cover, G thread type. The Airtac round body air cylinder, MF20X15CAG, is suitable for use in your pneumatic systems.
Airtac MF cylinders are a functional replacement for the SMC CM2 series cylinders.
Product Features:
1.JIS standard is implemented.
2.Piston adopts
heterogeneous two way seal structure. It has compact size and has the function of oil reservation.
3.Front cover owns fixed anti-impact pad which can reduce the impact of direction-change of the cylinder.
4.There are several modes of back cover, which makes the installation of cylinder more convenient.
5.Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.
6.The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.
7.With the same bore size and stroke, cylinders of MF series are shorter than ISO6432 standard cylinders.
8.There are cylinders and mounting accessories with several specifications for your choice.
