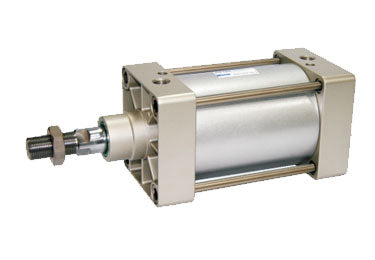

Image may not be representative of actual product.
Product features:
1. ISO15552 (original ISO6431) standard cylinder.
2. The piston seal is composed of two Y-shape seals of single-direction structure, which has compensation function, long service life and low start-up pressure.
3. SG series cylinders are made of stainless steel.
4. SGC series cylinders are made of aluminum pipe.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and accessories for installation with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150 degrees C.
1. ISO15552 (original ISO6431) standard cylinder.
2. The piston seal is composed of two Y-shape seals of single-direction structure, which has compensation function, long service life and low start-up pressure.
3. SG series cylinders are made of stainless steel.
4. SGC series cylinders are made of aluminum pipe.
5. The buffer adjustment of cylinder is smooth and steady.
6. Cylinders and accessories for installation with several specifications are optional.
7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150 degrees C.
Additional Info
| Acting Type | Double Acting |
|---|---|
| Airtac Product Series | Airtac SG Standard Air Cylinder (ISO 15552) |
| Bore Size | 160mm |
| Brand | Airtac |
| Component Type | Standard Air Cylinder |
| Magnet | Without Magnet |
| Stroke Length | 1270mm |
| Thread Type | NPT |
