Dual Voltage 120/240 VAC, 50/60Hz
Full HP rated - no auxiliary heat sink required
± 10% rated line voltage
Adjustable horsepower settings
Barrier terminal strip
Full wave bridge supply; 1% speed regulation
Adjustable Minimum speed (0–30% of base)
Adjustable Maximum speed (60–120% of base)
Adjustable IR Compensation
Adjustable Current Limit
Adjustable Linear Acceleration and Deceleration

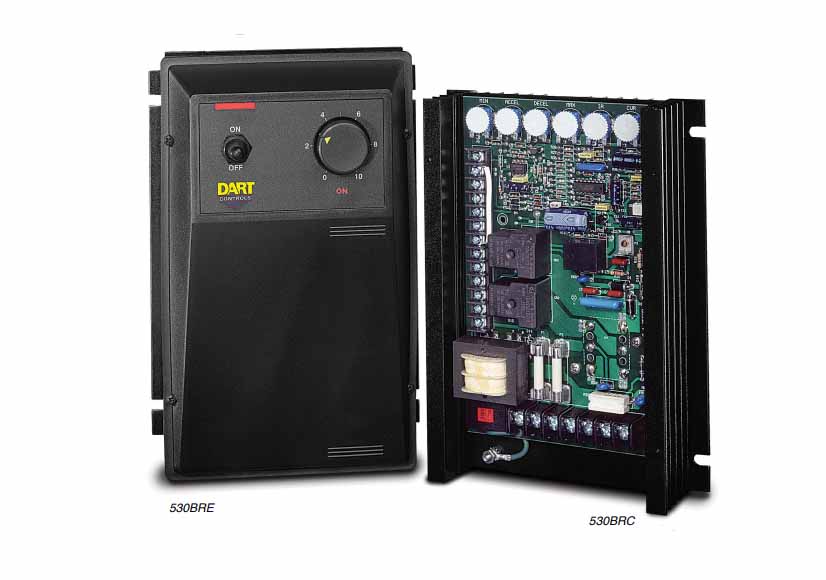

On-board power interrupt relay (RC and RE versions)
Solid state over-current output
-10° to +45°C ambient temperature
Line voltage compensation
5K ohm speed potentiometer kit included
50:1 speed range
Overload capacity: 200% for one minute
Transient voltage protection
Voltage follower mode - isolated signal (0–12 VDC)
Inhibit circuit–permits low power start & stop
