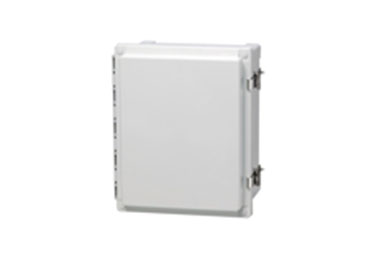

Fibox Polycarbonate Enclosure AR16148CHTSS | 8561066

Shop for Compatible Accessories:
PVC Back Panel - APBP1614 | 8590184
Painted Steel Back Panel - ABP1614 | 8592181
Aluminum Back Panel - ALBP1614 | 8592183
Swing Panel Kit incl. Panel - ASPK1614 | 8612027
Pole Mount Kit - APMK14

Dimensions:
Height (mm): 406
Width (mm): 356
Depth (mm): 203
Height (inch): 16
Width (inch): 14
Depth (inch): 8
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover screws material: Stainless steel
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane Temperatures:
Temperature degrees Celcius (short term): -40 - 140 degrees Celcius
Temperature degrees Celcius (continuous): -40 - 80 degrees Celcius
Temperature degrees Fahrenheit (short term): -40 - 284 degrees Fahrenheit
Temperature degrees Fahrenheit (continuous): -40 - 175 degrees Fahrenheit
Ratings:
Ingress Protection (EN 60529): IP66/IP67
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance: UL 508
Flammability Rating: UL 508
Glow Wire Test (IEC 695-2-1) degrees Celcius: 960
NEMA Class: UL Type 4, 4X, 6, 6P, 12 and 13

Additional Info

Brand Fibox
Component Type Enclosure
Depth 8" - 13"
Fibox Product Series Fibox ARCA PC Polycarbonate Enclosures
Height 11" - 17"
Width 11" - 15"
