Length: 330 mm
Width: 90 mm
Suitable for cable entry: KEL 16, KEL-U 16
Suitable for enclosure: Rittal AE
Flanged plate size: 3

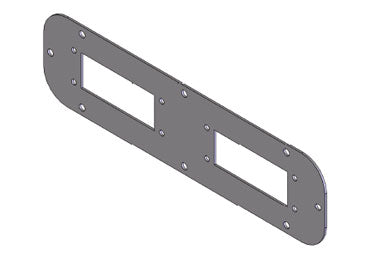

We supply complete flanged plates FP with 112 36 mm cut-outs for compact enclosures of the Rittal AE series. The cut-outs, as well as the drilling template, conform to the standard cut-outs for 24-pole industrial connectors.

All flanged plates are RAL 7035 powder-coated. Please use the gaskets of the standard plates. Enclosures are supplied with gaskets and screws.

We recommend fastening the cable entry systems with torque of 1.5 2.0 Nm.

Advantages:
No expensive extra sheet metal work is required
High packing density is achieved by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP
Reduce labor costs by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP compared to the assembly of conventional cable glands

Material: Sheet steel, powder coated
Color: gray (RAL 7035)
