Image may not be representative of actual product.
Length: 221 mm
Width: 90 mm
Suitable for cable entry: KEL-B, KEL-U-B, KEL-DPZ-B bk, KEL-DPZ-B gy
Suitable for enclosure: Rittal KL

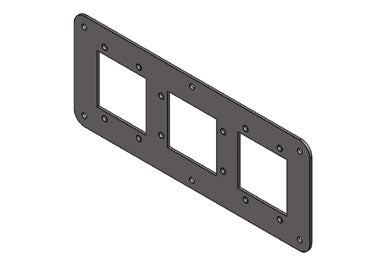

The FP flanged plates type KL, designed to fit the Rittal KL series junction boxes, are installed in combination with cable entry system for either pre-terminated or standard cables. FP flanged plates are pre-cut, pre-drilled and painted for easy and quick installation of icotek cable routing products.
We recommend fastening the cable entry systems with torque of 1.5 2.0 Nm.
Advantages:
No expensive extra sheet metal work is required
High packing density is achieved by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP
Reduce labor costs by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP compared to the assembly of conventional cable glands
Material: Sheet steel, powder coated
Color: gray (RAL 7035)
Width: 90 mm
Suitable for cable entry: KEL-B, KEL-U-B, KEL-DPZ-B bk, KEL-DPZ-B gy
Suitable for enclosure: Rittal KL
The FP flanged plates type KL, designed to fit the Rittal KL series junction boxes, are installed in combination with cable entry system for either pre-terminated or standard cables. FP flanged plates are pre-cut, pre-drilled and painted for easy and quick installation of icotek cable routing products.
We recommend fastening the cable entry systems with torque of 1.5 2.0 Nm.
Advantages:
No expensive extra sheet metal work is required
High packing density is achieved by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP
Reduce labor costs by using cable entry systems KEL, KEL-U, KEL-DPU, KEL-DPZ or KEL-DP compared to the assembly of conventional cable glands
Material: Sheet steel, powder coated
Color: gray (RAL 7035)
Additional Info
| Brand | Icotek |
|---|---|
| Component Type | Flanged Plate |
| Icotek Product Series | Icotek FP Flanged Plate |
| Package Quantity | Single |
