Length: 518 mm
Total length base plate: 518 mm
Width: 100 mm
Height: 44 mm
For enclosure width: 1200 mm
Sight size of base plate opening: 496 mm
Suitable for cable entry: KEL 24, KEL-U 24

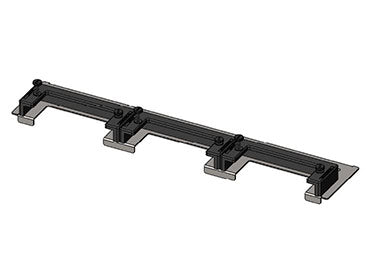

The KDR-ESR is one-piece plate to be assembled on enclosure bases. Slide frames for the KEL cable entry frames are already preassembled.

After fitting all cables into the KEL frames, they are easily and quickly inserted into the slide frames and fixed. During maintenance, the KEL frames are removed without tools from the slide frames. Due to the combination KDR-ESR and KEL cable entry frames, rating of IP54 is achieved (with correct selection of cable grommets). Slide frames which are no longer required, are closed with BPK-SNAP blind plates.

The base plate KDR-ESR is designed for Rittal enclosures TS8. Other sizes can be supplied on request

Advantages:
Easy assembly and removal
During assembly, almost the complete base of the enclosure can be used for installation of cables
Even large connectors can be installed easily
No additional sheet metal work required
Retrofitting possible without disconnecting cables. Everything can be built around the cables

IP protection class: IP54
Material base plate: Steel, zinc plated
Material ESR frame: Polyamide
Flame class: UL94-V0, self-extinguishing
Temperature: -40 - 90 degrees Celcius
Properties: Halogen free, Silicone free
Suitable for enclosure: Rittal TS
