Suitable grommets: x FT-1 flat cable grommets
Length: 120 mm
Width: 39 mm
Height: 17 mm
Cut-out length: 86 mm
Cut-out width: 24 mm
Material screws: Sheet steel, galvanically zinc plated
No. of screw holes: 2

Grommets must be purchased separately

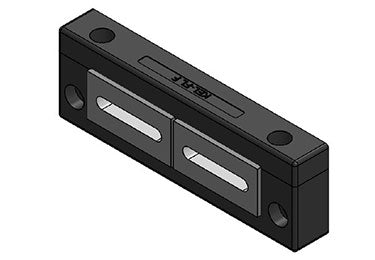

The KEL-FL range enables simple, fast and flexible cable routing and sealing of flat wires, e.g. in elevator construction.

Split or non-split inserts can be utilized. Innovative construction of the inserts compensates for manufacturing inconsistencies in flat wires.

Routing of flat cables in combination with pre-terminated round cables by using single KEL-FL cable entry frame
Space saving shape

IP protection class: IP54
Material: Polyamide
Color: black (RAL 9005)
Flame class: UL94-V0, self-extinguishing
Temperature: -40 140 degree
Properties: Halogen free, Silicone free, Anti-corrosive (V2A versions)
Mounting type: Screw type mounting
