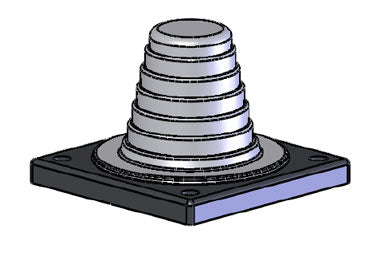

Image may not be representative of actual product.
Clamp area: x 27 48 mm
Length: 88 mm
Width: 88 mm
Height: 62 mm
Mounting height: 62 mm
Max. cut-out size round: 57.6 mm
Cut-out size flex round: 20
The KEL-JUMBO flex is flexible cable entry grommet for standard cables with diameter range from 27 68 mm. They are ideal for the routing supply cables into electronic enclosures or machines.
Cutting of KEL-JUMBO flex grommets: Cable diameter less 25%, the corresponding diameters are marked on the grommet.
Advantages:
Assembly within seconds
Grommets allow dynamic and flexible movement of rigid cables
Small assembly area (88- 88 mm)
IP protection class: IP54
NEMA rating: NEMA12
Material: Elastomer
Material base frame: Polyamide
Color: gray (similar RAL 7035)
Flame class: UL94-V0, self-extinguishing
Temperature: -40 90 degrees Celcius
Properties: Halogen free, Silicone free
Mounting type: Screwing
Length: 88 mm
Width: 88 mm
Height: 62 mm
Mounting height: 62 mm
Max. cut-out size round: 57.6 mm
Cut-out size flex round: 20
The KEL-JUMBO flex is flexible cable entry grommet for standard cables with diameter range from 27 68 mm. They are ideal for the routing supply cables into electronic enclosures or machines.
Cutting of KEL-JUMBO flex grommets: Cable diameter less 25%, the corresponding diameters are marked on the grommet.
Advantages:
Assembly within seconds
Grommets allow dynamic and flexible movement of rigid cables
Small assembly area (88- 88 mm)
IP protection class: IP54
NEMA rating: NEMA12
Material: Elastomer
Material base frame: Polyamide
Color: gray (similar RAL 7035)
Flame class: UL94-V0, self-extinguishing
Temperature: -40 90 degrees Celcius
Properties: Halogen free, Silicone free
Mounting type: Screwing
Additional Info
| Brand | Icotek |
|---|---|
| Cable Positions | 1 |
| Colors | Gray |
| Component Type | Cable Grommet |
| Icotek kel Jumbo flex | Cable Entry Grommet for Diameters up to 68mm |
| Icotek Product Series | Icotek KEL-JUMBO Cable Entry Grommet for Diameters up to 68mm |
| Package Quantity | Single |
