Image may not be representative of actual product.
Shield diameter: 3 - 6 mm
Length: 32 mm
Width: 18 mm
Height: 21 mm
For wall thickness: 2-3 mm

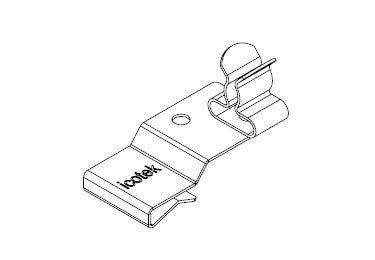

PFK2|SKL shield Clamp can be used for shielding two single cables. The shield Clamp are easy to use and enable reliable shielding of cables.
PFK2|SKL Clamp are used where screw connection is either not possible or wanted. The PFK2|SKL is simply clamped on the sheet. The claws provide secure grip, even in case of vibrations.
Advantages:
Optimal contact of the cable shield
Simple and tool-free assembly
Permanent, continuous pressure on the cable shield, no adjustment of the spring load required
Vibration proof, maintenance free
Optimal use of space
Shield clamp type: Double clamp
No. of shield clamps: 2
Material shield clamp: Spring steel, zinc plated
Material mounting foot: Spring steel
Mounting type: Clamping
Mounting location: Metal sheets
Length: 32 mm
Width: 18 mm
Height: 21 mm
For wall thickness: 2-3 mm
PFK2|SKL shield Clamp can be used for shielding two single cables. The shield Clamp are easy to use and enable reliable shielding of cables.
PFK2|SKL Clamp are used where screw connection is either not possible or wanted. The PFK2|SKL is simply clamped on the sheet. The claws provide secure grip, even in case of vibrations.
Advantages:
Optimal contact of the cable shield
Simple and tool-free assembly
Permanent, continuous pressure on the cable shield, no adjustment of the spring load required
Vibration proof, maintenance free
Optimal use of space
Shield clamp type: Double clamp
No. of shield clamps: 2
Material shield clamp: Spring steel, zinc plated
Material mounting foot: Spring steel
Mounting type: Clamping
Mounting location: Metal sheets
Additional Info
| Brand | Icotek |
|---|---|
| Cable Positions | 2 |
| Component Type | Shield Clamp |
| Icotek pfk Skl | Cable Shield Clamps Pluggable |
| Icotek Product Series | Icotek PFK-SKL Cable Shield Clamps Pluggable |
| Package Quantity | 10 Pack, Single |
| Shield Diameter | 3 - 6 mm |
