Shield diameter pos. 2: 3 - 6 mm
Length: 37 mm
Width: 18 mm
Height: 22 mm

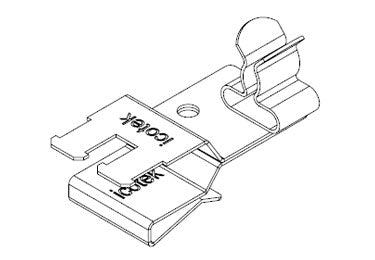

Comparable with the PFS2|SKL range, the PFSZ2|SKL shield clamps can be used for shielding two single cables at once. They are used for mounting on 10 3 mm bus bars.

The PFSZ2 range provides the possibility to fix the cable with cable tie. Strain relief in accordance with EN 50262 EN 62444 is achieved.

Advantages:
Integrated strain relief
Higher packing density
Optimal contact of the cable shield
Simple and tool-free assembly
Permanent, continuous pressure on the cable shield, no adjustment of the spring load required
Vibration proof, maintenance free

Shield clamp type: Double clamp
No. of shield clamps: 2
Material shield clamp: Spring steel, zinc plated
Material mounting foot: Spring steel
Mounting type: Plug-in
Mounting location: 10 3 mm bus bar
With strain relief


Additional Info

Brand Icotek
Cable Positions 2
Component Type Shield Clamp
Icotek pfs Skl Cable Shield Clamps for Bus Bars
Icotek Product Series Icotek PFK-SKL Cable Shield Clamps Pluggable
Package Quantity 10 Pack, Single
Shield Diameter 3 - 6 mm
