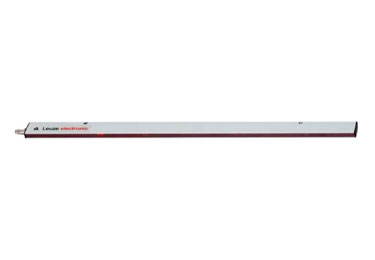

Light curtain receiver, Throughbeam operating principle, operating range: 0.3-5 m, 88 m field length, 8 beams, 12.5mm beam spacing, cycle time: 12 ms, 2 switching digital outputs, m8 connector, IP 65 protection
Series: 505
Operating principle: Throughbeam principle
Device type: Receiver
Application: Precise object detection
Operating range: 0.3 - 5 m
Measurement field length: 88 mm
Number of beams: 8
Beam spacing: 12.5 mm
Cycle time: 12 ms
Response time per beam: 1000 microseconds
Supply voltage: 18 - 30 V, DC
Number of digital switching outputs: 2
Output 1 switching element: Transistor, Push-pull
Output 1 switching principle: Light/dark reversible
Output 2 switching element: Transistor, Push-pull
Output 2 switching principle: Light/dark reversible
Number of connections: 1
Type of connection: Connector
Function: Signal OUT, Teach input, Voltage supply
Thread size: M8
Design: Cubic
Housing material: Metal, Aluminum
Type of display: LED
Number of LEDs: 2
Degree of protection: IP 65
The cost-optimized, CSL 505 switching light curtain is specially designed for simple applications. With its slim design, integrated evaluation unit and large opening angle for quick and simple alignment, it can be used for projection monitoring, free field monitoring and object detection.
Different measurement field lengths
Selectable resolution
M8 or cable variant
Factory configuration
Slim housing
Operating range of up to 5 m
Short cycle time
Prefailure message (soiling)
