Compatible with the following receiver:
MLC520R14-600H | 68012106

In order to install this light curtain you will also need to purchase a compatible receiver, safety relay, 2 connector cables, and two mounting bracket sets: safety relay, connection cables, and mounting brackets.

Application: Finger protection
Characteristic Parameter Type: 4,IEC/EN 61496
Resolution: 14 mm
Protective field height: 600 mm
Supply voltage: 24 V, DC, -20-20 %
Number of digital switching inputs: 1 Piece(s)
Type of connection: Connector
Function: Machine interface
Thread size: M12
Material: Metal,
Functions: Range reduction, Transmission channel changeover

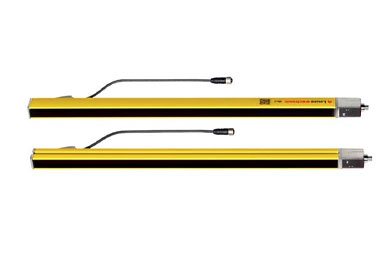

The type 4 Standard models with function extension

The Standard version of these type 4 safety light curtains features a start/restart interlock (RES) and contactor monitoring (EDM) for increased performance and it is simple to handle and integrate into your systems.

Basic functions such as automatic start/restart, start/restart interlock (RES), contactor monitoring (EDM)
Optimal handling due to function selection without PC as well as LED and 7-segment display with integrated 3-zone alignment aid
Prevention of mutual interference of the sensors by selectable transmission channels and range reduction, if applicable
Short delivery times and global availability
QR code on the sensor for quick service information
