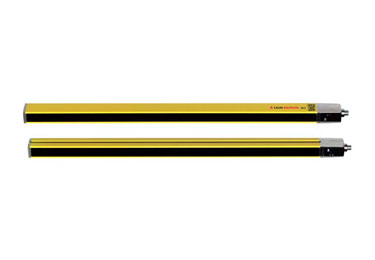

MLC510R40-600/A | 68007406
In order to install this light curtain you will also need to purchase a compatible receiver, safety relay, 2 connector cables, and two mounting bracket sets: safety relay, connection cables, and mounting brackets.
Characteristic Parameter Type: 4,IEC/EN 61496
Resolution: 40 mm
Protective field height: 600 mm
Supply voltage: 26.5-31.6 V
Number of digital switching inputs: 1 Piece(s)
Type of connection: Connector
Function: Machine interface
Thread size: M12
AS-Interface Safety at Work
This Basic model of the type 4 safety light curtains provides the most important functions. Range reduction on the transmitter, reversible transmission channels, a LED display as well as an automatic start/restart interlock round out the range of service. The type 4 Basic model is suitable for a range of applications and is optionally available with AS-i interface or safety class IP 67/69K.
Prevention of mutual interference of the sensors by selectable transmission channels and range reduction, if applicable
Universal application due to standard functions
Short delivery times and global availability
QR code on the sensor for quick service information
