Compatible with the following transmitters:
MLC500T30-450H/A | 68016304

In order to install this light curtain you will also need to purchase a safety relay, 2 connector cables, and two mounting bracket sets: safety relay, connection cables, and mounting brackets.

Application: Hand protection
Characteristic Parameter Type: 4,IEC/EN 61496
Resolution: 30 mm
Protective field height: 450 mm
Response time: 5 ms, plus response times of the middle guest/guest devices
Supply voltage: 26.5-31.6 V
Number of connections: 2 Piece(s)
Type of connection 1: Connector
Type of connection 2: Cable with connector
Thread size: M12
No. of pins: 5 -pin
Housing material: Metal
Lens cover material: Plastic (PMMA)
Degree of protection: IP 65

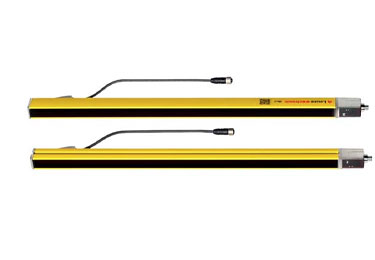

This Basic model of the type 4 safety light curtains provides the most important functions. Range reduction on the transmitter, reversible transmission channels, a LED display as well as an automatic start/restart interlock round out the range of service. The type 4 Basic model is suitable for a range of applications and is optionally available with AS-i interface or safety class IP 67/69K.

Advantages:
Automatic start/restart
Optimal handling
Prevention of mutual interference of the sensors by selectable transmission channels and range reduction, if applicable
Universal application due to standard functions
Short delivery times and global availability
QR code on the sensor for quick service information
