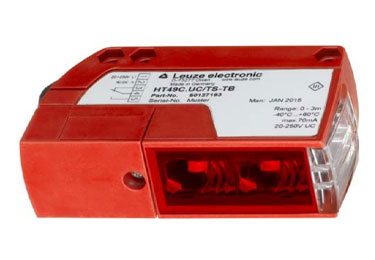

Image may not be representative of actual product.
Series: 49C
Operating principle: Reflection principle
Operating range: 0.3 - 24 m
Operating range limit: 0.1 - 30 m
Light source: LED, Red
Switching frequency: 150 Hz
Response time: 3.3 ms
Protective circuit: Interference blanking, Transient protection
Supply voltage: 20 - 250 V, AC/DC
Number of digital switching outputs: 1
Switching element: MOSFET semiconductor, NO (normally open)
Switching principle: Light switching
Type of connection: Terminal
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Via optional mounting device
Degree of protection: IP 67, IP 69K
Reliable detection of glossy or shrink-wrapped objects with/without polarization filter with visible red light or infrared model over a large distance.
Particularly large function reserve
Use of standard reflectors
Potential-free relay outputs for connecting long cables
MOSFET output for high switching frequencies or NPN/PNP output
Additional Info
| Brand | Leuze |
|---|---|
| Component Type | Photoelectric Sensor Cubic |
| Connection | Terminal |
| Housing Material | Plastic |
| Leuze Product Series | Leuze 49C Photoelectric Sensor Cubic |
| Operating Range | 0.3-24 m |
| Sensing Method | Polarized Retro-Reflective |
