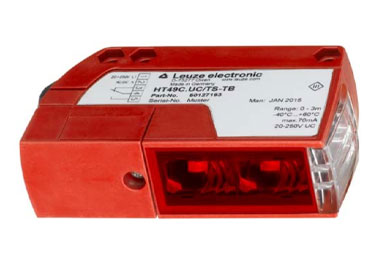

Image may not be representative of actual product.
Series: 49C
Operating principle: Reflection principle
Operating range: 0.1 - 24 m
Operating range limit: 0.1 - 30 m
Light source: LED, Red
Switching frequency: 500 Hz
Response time: 1 ms
Protective circuit: Transient protection, Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC
Number of digital switching outputs: 2
Output 1 switching element: Transistor, PNP
Output 1 switching principle: Light switching
Output 2 switching element: Transistor, PNP
Output 2 switching principle: Dark switching
Type of connection: Terminal
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Via optional mounting device
Degree of protection: IP 67, IP 69K
Certifications: c UL US
Reliable detection of glossy or shrink-wrapped objects with/without polarization filter with visible red light or infrared model over a large distance.
Particularly large function reserve
Use of standard reflectors
Potential-free relay outputs for connecting long cables
MOSFET output for high switching frequencies or NPN/PNP output
Additional Info
| Brand | Leuze |
|---|---|
| Component Type | Photoelectric Sensor Cubic |
| Connection | Terminal |
| Housing Material | Plastic |
| Leuze Product Series | Leuze 49C Photoelectric Sensor Cubic |
| Operating Range | 0.1-24 m |
| Sensing Method | Polarized Retro-Reflective |
