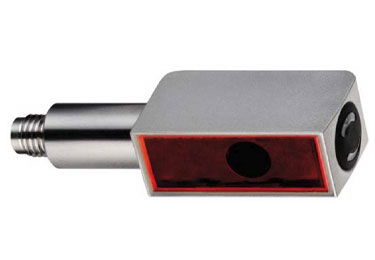

Image may not be representative of actual product.
Series: 53
Operating principle: Reflection principle
Application: Detection of highly transparent bottles
Operating range: 0 - 0.5 m
Operating range limit: 0 - 0.4 m
Light source: Laser, Red
Laser class: 1, IEC/EN 60825-1:2007
Light spot size: 3mm
Switching frequency: 2000 Hz
Response time: 0.25 ms
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC
Number of teach inputs: 1
Number of digital switching outputs: 1
Switching element: Transistor, Push-pull
Switching principle: Light switching (PNP)/dark switching (NPN)
Type of connection: Connector
Thread size: M8
Number of pins: 4-pin
Design: Cubic
Type of fastening: Housing fit
Operational controls: Teach button
Degree of protection: IP 67, IP 69K
Certifications: c UL US
Special design: Teach input, Autocollimation, HYGIENE design
Stainless steel sensors with autocollimation optics and red light with ranges of up to 3m for transparent objects, both in a polarized design for glass panes (PRK devices) and a non-polarized design for foils (RKR devices).
316L stainless steel housing in HYGIENE-Design
Enclosed optics design prevents bacterial carry-overs
ECOLAB and CleanProof tested
High switching frequency for detection of fast events
Easy adjustment via lockable teach button or teach input
Additional Info
| Application Function | Autocollimation, HYGIENE Design, Teach Input |
|---|---|
| Brand | Leuze |
| Component Type | Photoelectric Sensor Cubic |
| Connection | M8 Plug |
| Housing Material | Stainless Steel |
| Leuze Product Series | Leuze 53 Photoelectric Sensor Cubic |
| Operating Range | 0-0.5 m |
| Sensing Method | Polarized Retro-Reflective |
