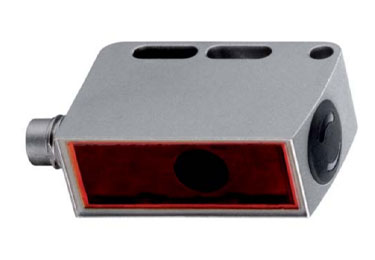

Image may not be representative of actual product.
Series: 55
Operating principle: Reflection principle
Operating range: 0 - 2 m
Operating range limit: 0 - 3 m
Light source: Laser, Red
Laser class: 1, IEC/EN 60825-1:2007
Light spot size: 2mm
Switching frequency: 2000 Hz
Response time: 0.25 ms
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC
Number of teach inputs: 1
Number of digital switching outputs: 1
Switching element: Transistor, Push-pull
Switching principle: Light switching (PNP)/dark switching (NPN)
Type of connection: Cable
Cable length: 5000mm
Number of conductors: 4-wire
Design: Cubic
Type of fastening: Via optional mounting device, Through-hole mounting
Operational controls: Teach button
Degree of protection: IP 67, IP 69K
Certifications: c UL US
Special design: Autocollimation, Teach input, WASH-DOWN design
Polarized retro-reflective photoelectric sensors available with red light in V4A/316L and as laser models. The autocollimation function ensures precise detection of even highly-glossy objects.
Enclosed optics design prevents bacterial carry-overs
ECOLAB and CleanProof tested
Scratch resistant and non-diffusive plastic front cover
Active Ambient Light Suppression
High switching frequency for detection of fast events
Easy adjustment via lockable teach button or teach input
Additional Info
| Application Function | Autocollimation, Teach Input |
|---|---|
| Brand | Leuze |
| Component Type | Photoelectric Sensor Cubic |
| Connection | 5000mm Cable Connection |
| Housing Material | Stainless Steel |
| Leuze Product Series | Leuze 55 Photoelectric Sensor Cubic |
| Operating Range | 0-2 m |
| Sensing Method | Polarized Retro-Reflective |
