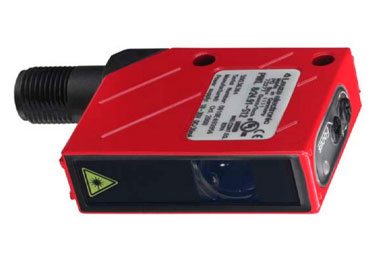

Image may not be representative of actual product.
Series: 8
Operating principle: Reflection principle
Operating range: 0 - 12 m
Operating range limit: 0 - 14 m
Light source: Laser, Red
Laser class: 2, IEC/EN 60825-1:2007
Switching frequency: 2800 Hz
Response time: 0.18 ms
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC
Number of digital switching outputs: 2
Output 1 switching element: Transistor, PNP
Output 1 switching principle: Light switching
Output 2 switching element: Transistor, PNP
Output 2 switching principle: Dark switching
Type of connection: Connector
Thread size: M12
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Dovetail grooves, Mounting thread, Via optional mounting device
Operational controls: Multiturn potentiometer
Degree of protection: IP 67, IP 69K
Certifications: c UL US
Special design: Autocollimation
Retro-reflective photoelectric sensors with visible red light or laser and degree of protection IP 67 and IP 69K.
Advantages:
Push-pull or NPN/PNP outputs immune to interference
M12 turning connector or cable connection
Sensitivity adjustment with potentiometer or teach-in
Additional Info
| Application Function | Autocollimation |
|---|---|
| Brand | Leuze |
| Component Type | Photoelectric Sensor Cubic |
| Connection | M12 Plug |
| Housing Material | Metal |
| Leuze Product Series | Leuze 8 Photoelectric Series Cubic |
| Operating Range | 0-12 m |
| Sensing Method | Polarized Retro-Reflective |
