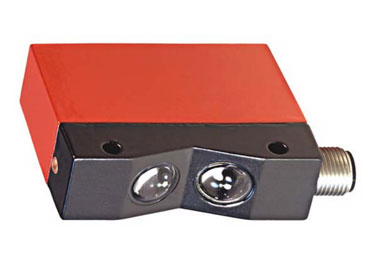

Image may not be representative of actual product.
Series: 93
Operating principle: Diffuse reflection principle
Operating range, white 90%: 0.005 - 0.15 m
Operating range, gray 18%: 0.02 - 0.1 m
Operating range, black 6%: 0.025 - 0.07 m
Operating range limit, white 90%: 0.005 - 0.17 m
Operating range limit, gray 18%: 0.02 - 0.11 m
Operating range limit, black 6%: 0.025 - 0.08 m
Light source: LED, Infrared
Switching frequency: 250 Hz
Supply voltage: 10 - 30 V, DC
Number of digital switching outputs: 1
Switching element: Transistor, PNP
Switching principle: Light switching
Type of connection: Connector
Thread size: M12
Design: Cubic
Degree of protection: IP 65
Certifications: c UL US
Special design: V-optics
The unique feature of this series is the V-shaped optical system, which ensures extremely powerful object detection and reliable fading. Particularly for applications in which glossy or transparent objects are detected and/or glossy backgrounds must be reliably suppressed through scanning, this series in a metal housing delivers optimized solutions.
Sensor with foreground and background suppression through V-shaped optics
Infrared light
Very good detection of dark objects
Reliable scanning detection of transparent and highly reflective objects
Additional Info
| Application Function | V-Optics |
|---|---|
| Brand | Leuze |
| Component Type | Photoelectric Sensor Cubic |
| Connection | M12 Plug |
| Housing Material | Metal |
| Leuze Product Series | Leuze 93 Photoelectric Sensor Cubic |
| Operating Range | 0.005-0.15 m |
| Sensing Method | Energetic Diffuse |
