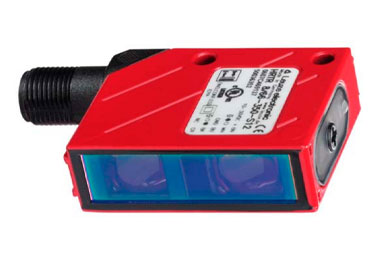

Image may not be representative of actual product.
Series: 8
Operating principle: Diffuse reflection principle
Operating range, white 90%: 0 - 0.25 m
Operating range, gray 18%: 0 - 0.25 m
Operating range, black 6%: 0 - 0.25 m
Operating range limit, white 90%: 0 - 0.25 m
Operating range limit, gray 18%: 0 - 0.25 m
Operating range limit, black 6%: 0 - 0.25 m
Light source: LED, Red
Switching frequency: 1000 Hz
Response time: 0.5 ms
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage: 10 - 30 V, DC
Number of digital switching outputs: 2
Output 1 switching element: Transistor, Push-pull
Output 1 switching principle: Light switching (PNP)/dark switching (NPN)
Output 2 switching element: Transistor, Push-pull
Output 2 switching principle: Dark switching (PNP)/light switching (NPN)
Type of connection: Connector
Thread size: M12
Number of pins: 5-pin
Design: Cubic
Type of fastening: Through-hole mounting, Dovetail grooves, Mounting thread, Via optional mounting device
Operational controls: Multiturn potentiometer
Degree of protection: IP 67, IP 69K
Certifications: c UL US
These light scanners feature a visible red light and are perfectly suited for rough environmental conditions. In addition, models with foreground suppression (VRTR 8) are available.
Advantages:
Push-pull, PNP outputs or AS-Interface IO
Scanning range adjustment with potentiometer
M12 turning connector or cable connection
Visible red light
Additional Info
| Brand | Leuze |
|---|---|
| Component Type | Photoelectric Sensor Cubic |
| Connection | M12 Plug |
| Housing Material | Metal |
| Leuze Product Series | Leuze 8 Photoelectric Series Cubic |
| Operating Range | 0-0.25 m |
| Sensing Method | Diffuse with Foreground Suppression |
