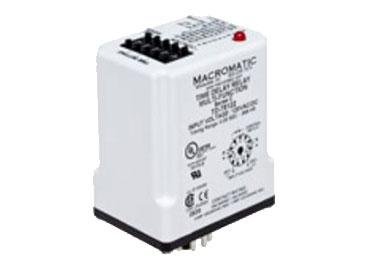

Image may not be representative of actual product.
Features:
Available in either Multi-Function (with ten user-selectable modes) or Single-Function versions
Pushbutton Thumbwheels for digital set of time delay (all versions) & function (TD-781 series only)
50ms - 999 hour programmable time range
LED indicates timing mode and time out conditions
Pilot Duty Rating
Enclosure Style:
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets
Configuration/Contact Rating:
DPDT
10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300
Additional Info
| Application Function | On Delay |
|---|---|
| Brand | Macromatic |
| Coil Voltage1 | DC 12V |
| Component Type | Industrial Timer |
| Contact Form | DPDT |
| Macromatic Product Series | Macromatic TD-7 Time Delay Relay - Digital Set Multi-Function Programmable |
| Operating Current | 10A |
| Timing Range | 0.05 seconds-999 hours |
