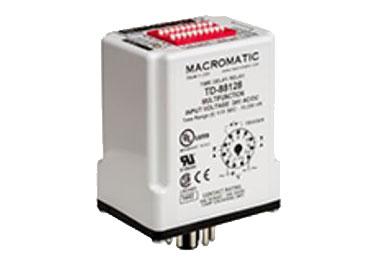

Image may not be representative of actual product.
Features:
Available as either a multifunction version with 16 functions built-in or as individual function versions
DIP-Switches for accurate digital set of time delay (multi- & single-function) & selection of function (for multi-function only)
Programmable delay of 50ms - 10,230 hours (multi-function) or 100ms - 1,023 hours (single-function)
LED indicates relay status
Pilot Duty Rating
Enclosure Style:
Plug-in case utilizing industry-standard 8 & 11 pin octal sockets
Configuration/Contact Rating:
DPDT (SPDT version also available on TD-881 multi-function Series)
10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 & R300
Additional Info
| Application Function | Delayed Interval |
|---|---|
| Brand | Macromatic |
| Coil Voltage1 | AC/DC 48V |
| Component Type | Industrial Timer |
| Contact Form | DPDT |
| Macromatic Product Series | Macromatic TD-8 Time Delay Relay - Digital Set Multi-Function Programmable |
| Operating Current | 10A |
| Timing Range | 10-10230 minutes |
