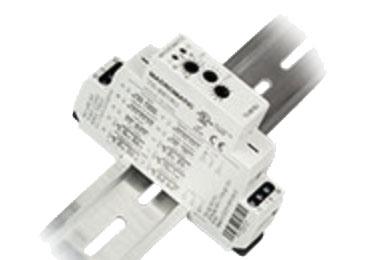

Image may not be representative of actual product.
Features:
10 field-selectable timing functions in one unit
Universal input voltage: 12-240V AC/DC
0.1 second - 10 days programmable time delay
15A SPDT or DPDT output contacts
Pilot Duty Rating
LEDs indicate output relay status & timing mode
Enclosure Style:
17.5mm Modular for 35mm DIN-Rail Mounting
Configuration/Contact Rating:
SPDT & DPDT
15A @ 240V AC, 1/3HP @ 120V AC, 3/4HP @ 240V AC, B300
Additional Info
| Application Function | Multifunction |
|---|---|
| Brand | Macromatic |
| Coil Voltage1 | AC 24-240V |
| Component Type | Industrial Timer |
| Contact Form | DPDT |
| Macromatic Product Series | Macromatic TE-881 Time Delay Relay - 17.55mm Modular |
| Operating Current | 15A |
| Timing Range | 0.1 seconds-10 days |
