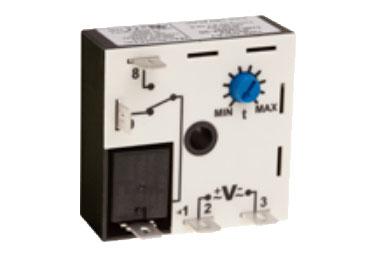

Image may not be representative of actual product.
Features:
Cost effective design & compact 2" x 2" enclosure are ideal for industrial applications
Microprocessor-based design for reliable performance & maximum flexibility
Encapsulated for protection against harsh environments
10A SPDT relay output contacts can handle most pilot duty & fractional hp loads
Input voltages of 12VDC, 24VAC/DC, 120VAC/DC & 240VAC
Onboard & remote adjustable or fixed time delays from 0.05 seconds to 100 hours
Enclosure Style:
Encapsulated 2" x 2" enclosure with single screw mounting
Configuration/Contact Rating:
SPDT
10A @ 240VAC / 7A @ 28VDC, 1/4hp @ 120VAC (N.O.)
Additional Info
| Application Function | Flasher Off 1st |
|---|---|
| Brand | Macromatic |
| Coil Voltage1 | DC 12V |
| Component Type | Industrial Timer |
| Contact Form | SPDT |
| Macromatic Product Series | Macromatic THR-1 Time Delay Relay - Relay Output |
| Operating Current | 10A |
| Timing Range | 1-100 hours |
