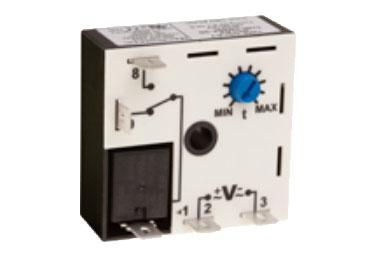

Cost effective design & compact 2" x 2" enclosure are ideal for industrial applications
Microprocessor-based design for reliable performance & maximum flexibility
Encapsulated for protection against harsh environments
10A SPDT relay output contacts can handle most pilot duty & fractional hp loads
Input voltages of 12VDC, 24VAC/DC, 120VAC/DC & 240VAC
Onboard & remote adjustable or fixed time delays from 0.05 seconds to 100 hours

Enclosure Style:
Encapsulated 2" x 2" enclosure with single screw mounting

Configuration/Contact Rating:
10A @ 240VAC / 7A @ 28VDC, 1/4hp @ 120VAC (N.O.)

Additional Info

Application Function Repeat Cycle Off 1st
Brand Macromatic
Coil Voltage1 AC 120V
Component Type Industrial Timer
Contact Form SPDT
Macromatic Product Series Macromatic THR-1 Time Delay Relay - Relay Output
Operating Current 10A
Timing Range 1-100 minutes
