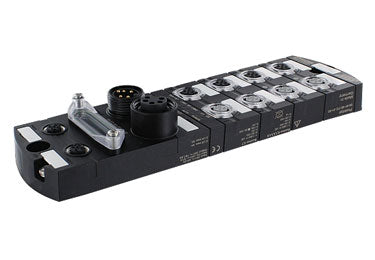

Shop for the Murrelektronik 55132 I/O system -

Sensor supply US: 24 V DC (EN 61131-2), max. 200 mA (M12 female), short-circuit and overload protected
Type: for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
Fieldbus: M12, D-coded
Sensor-system/actuator supply: 7/8", 5-pole, 2 x max. 9 A
I/O ports: M12, A-coded, 5-pole
FSU (Fast-Start-Up): max. 500 ms
Shared Device/Input: yes, for 2 controls
Profinet Netload Class: III
Specification: V2.3, Conformance Class C (IRT)
Operating voltage: 24 V DC (EN 61131-2)
Operating modes: Autonegotiation/Auto MDI/MDI-X
Transfer rate: to 100 Mbit/s Full Duplex
Addressing: DCP
I/O Link: 4 x Master
Operating modes: COM1; COM2; COM3 (automatic)
Transfer parameters: 32 Byte (via IO-Link Port)
Port Class: Type A B (not galvanically separated)
Specification: IO-Link Master V1.12
Protection: IP67
Mounting method: 2 hole screw mounting, compatible with I/O modules of MVK model range
Dimensions H x W x D: 39x63x225 mm
Temperature range: -25 - 55 degrees Celcius (storage temperature -25 - 70 degrees Celcius)
Actuator supply UA: 24 V DC (EN 61131-2), max. 9 A
Switching current per output: max. 1.6 A (short-circuit and overload protected)
Lamp load: 10 W
PIN 4: Input (port X0 - X7); output (port X0, X2, X4, X6); IO-Link master (port X1, X3, X5, X7)
PIN 2: Input/output (port X0 - X7); U-actuator IO-Link ClassB (port X5, X7)
Communication status: via LED
Diagnostic via LED: per module and channel
Diagnostic via BUS: per module and channel
Monitoring - under voltage: yes
Monitoring - no voltage: yes
Short circuit and overload: yes
Actuator warning: per channel via LED and BUS
Cable break: per port

Impact67 is the perfect fieldbus solution for basic applications that need to be cost-effective. The modules in this product range are available with different bus protocols: PROFIBUS, CanOpen, DeviceNet, EtherCat,EtherNet/IP and PROFINET. Impact67 features pluggable connections, diagnostic options and IP67 tested seals.

Advantages:
Predefined inputs and outputs - helps facilitate configuration
Single channel diagnostic via LEDs - don't look for errors, find them
Group diagnostics via the bus - easy remote diagnostics
Port-related shut-off - only the failed port is switched off
