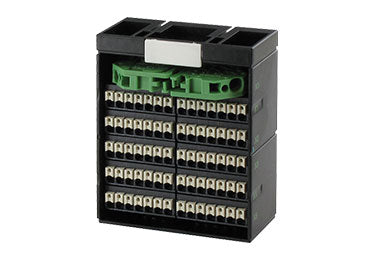

Image may not be representative of actual product.
Shop for the Murrelektronik 56082 I/O system -
Operating voltage: max. 30 V AC/DC
Total current: max. 20 A
Input terminals: Spring clamp terminals: 0.08 - 2.5 mm^2 (AWG 28 - 14)
Protection: IP20
Dimensions H x W x D: 70x56x32.5 mm
Connection: Push-In 0.13 - 1.5 mm^2 (AWG 28 - 16)
Temperature range: 0 - 55 degrees Celcius (storage temperature -40 - 85 degrees Celcius)
Operating voltage: max. 30 V AC/DC
Total current: max. 20 A
Input terminals: Spring clamp terminals: 0.08 - 2.5 mm^2 (AWG 28 - 14)
Protection: IP20
Dimensions H x W x D: 70x56x32.5 mm
Connection: Push-In 0.13 - 1.5 mm^2 (AWG 28 - 16)
Temperature range: 0 - 55 degrees Celcius (storage temperature -40 - 85 degrees Celcius)
Additional Info
| Brand | Murrelektronik |
|---|---|
| Component Type | Terminal Block |
| Murr Product Series | Murrelektronik Cube20 |
