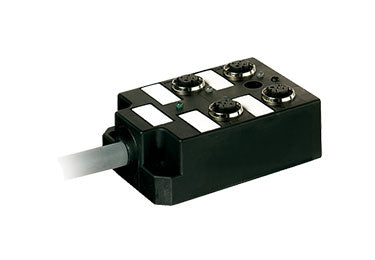

Shop for the Murrelektronik 27835 I/O system -

PIN 1: ( )
PIN 2: (NC)/(S2)
PIN 3: (-)
PIN 4: (NO)/(S1)
PIN 5: (Earth)
LED display: LED (green): Power / LED (yellow): (S1/S2)
Cable number: 363
No./diameter of wires: 8x0.34 3x0.75 mm^2
Wire isolation: PVC
C-track properties: 2 Mio.
Jacket Color: gray
Material (jacket): PUR/PVC
Outer diameter: approx. 9.1 mm
Bend radius (fixed): 10 x outer diameter
Bend radius (moving): 12 x outer diameter
Temperature range (fixed): -30 - 80 degrees Celcius
Temperature range (mobile): -5 - 70 degrees Celcius
Operating voltage: 24 V DC
Operating current per contact: max. 4 A
Total current: max. 10 A
Signal per port: 2
Locking of ports: Screw thread M12 x 1 mm
Dimensions H x W x D: 82x54.5x25 mm
Protection: IP67 inserted and tightened (EN 60529)
Temperature range: -20 - 80 degrees Celcius

Distribution boxes are designed for consistently plugged solutions from the control into the field. They can be easily separated for assembly and transport. These boxes are fully potted which makes them sealed and very resistant.

Murrelektronik M12 Distribution Systems - Plastic

- Quick installation with pre-wired and tested cables
- Easy to separate during transportation and simple when redesigning your system, rapid replacement of damaged cables
- Double assignment of M12 ports saves space
- Safety models for inputs and outputs according to EN IS O 13849-2
- Universal configuration - contacts designed 1:1



Additional Info

Brand Murrelektronik
Cable Length 15m
Component Type Distribution Module
Material Plastic
Murr Product Series Murrelektronik M12 Distribution Systems
Output Type PNP
