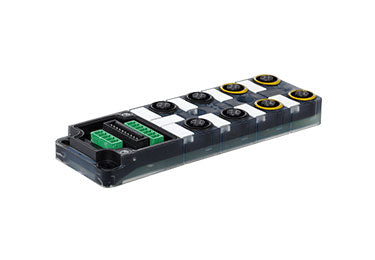

Shop for the Murrelektronik 8000-98700-0000000 I/O system -

PIN 1: ( ) port 1 - 4
PIN 2: (NC)/(S2) port 1 - 4; (S1) port 5 - 8
PIN 3: (-) port 1 - 4; (S2) port 5 - 8
PIN 4: (NO)/(S1) port 1 - 4; (S3) port 5 - 8
PIN 5: (Earth)
LED display: LED (green): Power / LED (yellow): (S1) / LED (white): Signal (S2) port 1 - 4
Operating voltage: 24 V DC
Operating current per contact: max. 4 A
Total current: max. 8 A
Protection: IP65/IP67
Housing: Plastic, flame retardant
Locking of ports: Screw thread M12 x 1 mm
Temperature range: -20 - 60 degrees Celcius

Distribution boxes are designed for consistently plugged solutions from the control into the field. They can be easily separated for assembly and transport. These boxes are fully potted which makes them sealed and very resistant.

Murrelektronik M12 Distribution Systems - Plastic

- Quick installation with pre-wired and tested cables
- Easy to separate during transportation and simple when redesigning your system, rapid replacement of damaged cables
- Double assignment of M12 ports saves space
- Safety models for inputs and outputs according to EN IS O 13849-2
- Universal configuration - contacts designed 1:1



Additional Info

Brand Murrelektronik
Component Type Distribution Module
Murr Product Series Murrelektronik M12 Distribution Systems
Output Type PNP
