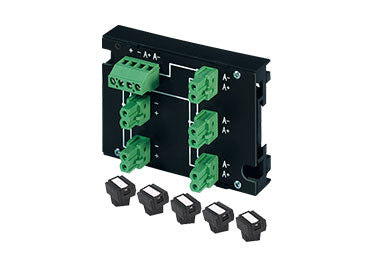

Image may not be representative of actual product.
Shop for the Murrelektronik 55606 I/O system -
Operating voltage: max. 36 V DC
Current per connection: max. 8 A
Total current: max. 24 A
Test isolation voltage: AS-Interface/Power 200 V, (EN 60664-1)
Protection: IP20
Connection: Screw terminal: single wire (0.25 - 4 mm^2), stranded wire (0.5 - 2.5 mm^2)
Mounting method: DIN-rail mountable (EN 60715)
Temperature range: -20 - 70 degrees Celcius
Dimensions H x W x D: 52x67x90 mm
Murrelektronik MASI00 and MASI20 modules are designed to correctly support the single strand wiring used in control cabinets and terminal boxes. This gives you the advantage during installation, setup and maintenance. The modules have a slim design which makes them the perfect choice for applications in terminal boxes and cabinets. The coded, pluggable connections reduce time and errors during installation.
Advantages:
High signal density in a very small space
Pluggable cutting clamp or spring clamp connections
Sensor supply from AS Interface or 24 V DC
Operating voltage: max. 36 V DC
Current per connection: max. 8 A
Total current: max. 24 A
Test isolation voltage: AS-Interface/Power 200 V, (EN 60664-1)
Protection: IP20
Connection: Screw terminal: single wire (0.25 - 4 mm^2), stranded wire (0.5 - 2.5 mm^2)
Mounting method: DIN-rail mountable (EN 60715)
Temperature range: -20 - 70 degrees Celcius
Dimensions H x W x D: 52x67x90 mm
Murrelektronik MASI00 and MASI20 modules are designed to correctly support the single strand wiring used in control cabinets and terminal boxes. This gives you the advantage during installation, setup and maintenance. The modules have a slim design which makes them the perfect choice for applications in terminal boxes and cabinets. The coded, pluggable connections reduce time and errors during installation.
Advantages:
High signal density in a very small space
Pluggable cutting clamp or spring clamp connections
Sensor supply from AS Interface or 24 V DC
Additional Info
Brand | Murrelektronik |
---|---|
Component Type | Installation Technology |
Murr Product Series | Murrelektronik MASI |
