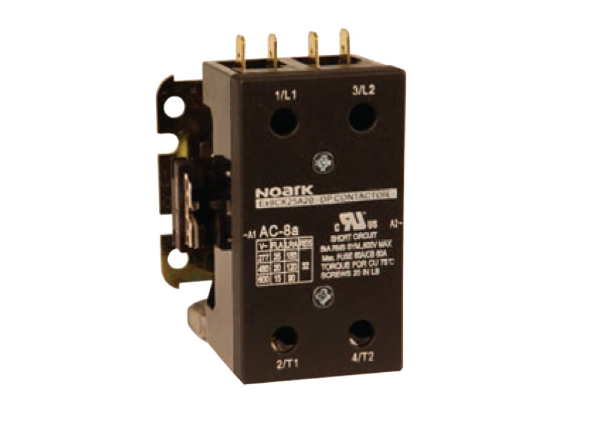

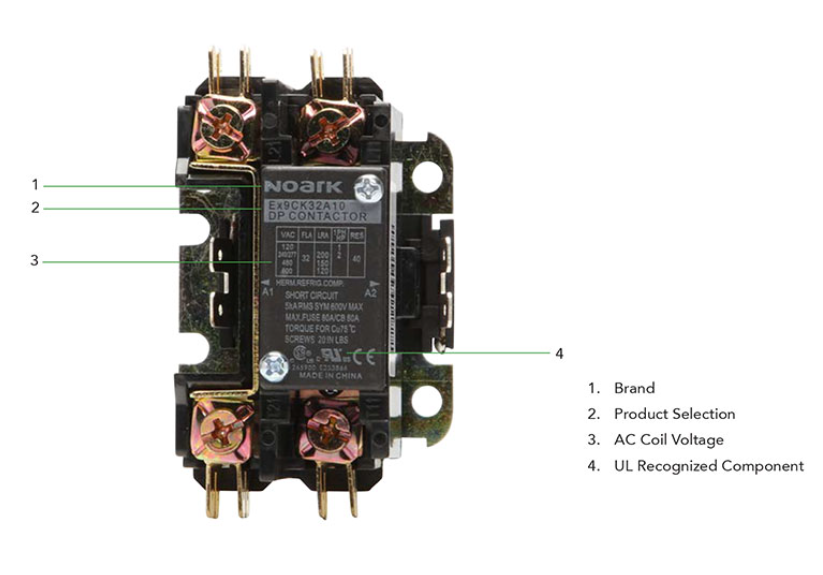

Lug Definite Purpose Contactor, AC Coil Voltage 24V, 2 Pole, Contacts- 2 Normally Open (NO)
Part Number- 1313921
Full Load Current 20A
Resistive Current 35A
Locked Rotor Current 100A
Current 20A
Features:
- Coil voltages from 24~600 Vac, 50/60 Hz
- Coil is Class B 266 ºF (130 ºC)
- Available with enclosed coils for protection against particle contamination
- Industry standard mounting plate provides easily accessible mounting holes
- More connection terminal options, including screw or lug connections each with quick connect spades
- Double E magnet assembly provides optimal performance with reduced power consumption
- 1NO+1NC auxiliary contact block with 600 Vac available as an option
- Base assembly is made from high arc-resistant polyester
Certifications
- UL Recognized Component, File Number E353866
- Certified for Canada According to CSA Standards
- IEC/EN 60947-4-1
- Complies with VDE Standards
