Name: Noark Ex9CS:Current Miniature IEC Contactor - Ex9CS1201G7
Brand: Noark
SKU: Ex9CS1201G7
Price: 27.83 USD

Noark Ex9CS:Current Miniature IEC Contactor - Ex9CS1201G7

Image may not be representative of actual product.

Have a Question?

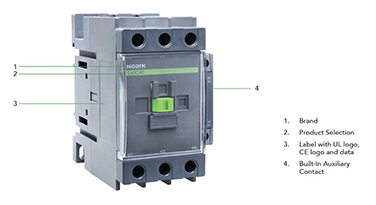

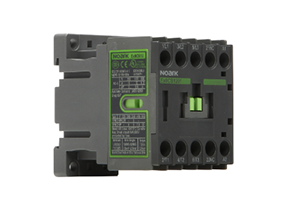

Current Miniature IEC Contactor

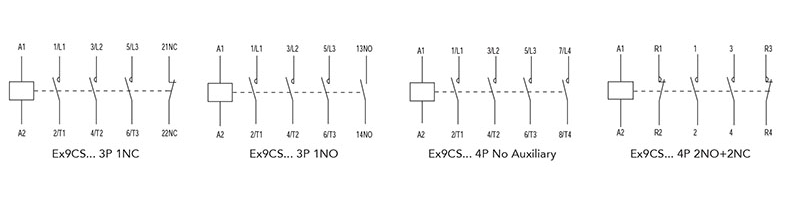

Ex9CS Series, 1 Normally Closed (NC) + 3 Normally Open (NO)
Coil Voltage Range 120Vac, Current 12A, 50/60 Hz
Part Number- 1320096

Ex9CS Contactor are intended for various applications including heavy industrial loads. Nine frame sizes allow optimization of electrical parameters and mechanical dimensions. A range of overload relays are available in a variety of frame sizes to fit respective contactors of a given rated current. 5-Year limited warranty.

Features:
Nine frame sizes with rated current up to 1000 A at 690 V AC-3
Coil control voltages available in AC and DC with ranges from 24-600 V.
Wide range electronic coil available for 9-500 A contactors features built-in surge suppression.

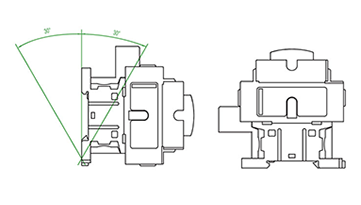

DIN rail 35 mm and panel mountable

Additional Info

Brand	Noark
Coil Voltage Range	120Vac
Component Type	Miniature IEC Contactor
Noark Product Series	Noark Ex9CS
Number Of Poles	3
Operating Current	12A
