Input current: 0.55 A (3 x 400 V AC)
Input fuse (external): 0.63 A (T)
Frequency: 50 - 60 Hz
Standards: EN 61558-2-6, EN 62041 category I, EN 55011 B, EN 61000-3-2
Mounting method: Key-hole mounting
Fixing centers a x b x c: 164x58x6.5 mm
Dimensions H x W x D: 185x78x188 mm
Temperature range: -20 - 55 degrees Celsius, for any mounting position at vertical wall, no condensation
Output voltage: 24 V DC (SELV)
Output current: max. 10 A
Ripple: max. 2%rms
Output fuse external: 10 A (T)
Output filter: LED, VDR and smoothing capacitor

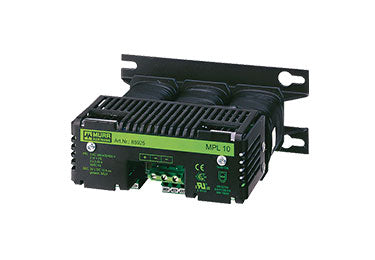

The switch mode power supply is the core of your control cabinet - and Murrelektronik's regulated power supply units are the perfect regulators. Murr focuses on providing consistent, constant output voltages for your system - independent of how much input voltage fluctuates. They offer the most reliable solutions for almost any application, for example: in the machine tool building industry, in the processing industry or in the shipbuilding industry.
Murrelektronik's power supply units have many approvals and feature a wide input voltage range, which makes them suitable for global applications. Comprehensive product range with switch mode power supplies, transformers, buffer modules, redundancy modules, load circuit monitoring and much more. High flexibility with the right model for your needs. 100 % compatible. For global applications. Durable units ensures system availability.
