Input voltage: 95 - 265 V AC
Inrush current after 1 ms: max. 20 A
Primary fusing external: max. 10 A
Frequency: 50 - 60 Hz
Input current: 1.5 A (115 V AC); 0.75 A (230 V AC)
Standards: EN 60950-1, EN 61204-3, EN 55022 B
Efficiency: 84%
Relative humidity: 5 - 95%, no condensation
Mounting method: DIN-rail mountable TH35 (EN 60715), additional plate for screw mounting Art.-No. 89500
Dimensions H x W x D: 132x75x71 mm
Temperature range: 0 - 60 degrees Celsius (storage temperature -25 - 85 degrees Celsius)
Output voltage: 24 V DC (SELV), 3/-1%
Output current: 3 A ( 60 degrees Celsius); 3.5 A ( 40 degrees Celsius)
Mains failure bridging time: min. 8.3 ms (115 V AC); min. 80 ms (230 V AC)
Ripple: max. 20 mVrms
Spikes: max. 100 mV p-p
Unit protection: short-circuit and overload protected
LED display: LED (green) at min. 22 V DC
Parallel usage/serial usage: no/yes

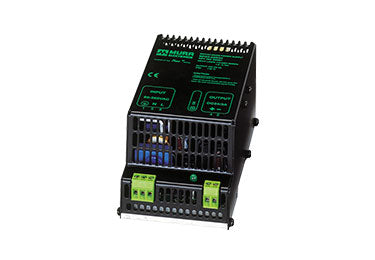

The switch mode power supply is the core of your control cabinet - and Murrelektronik's regulated power supply units are the perfect regulators. Murr focuses on providing consistent, constant output voltages for your system - independent of how much input voltage fluctuates. They offer the most reliable solutions for almost any application, for example: in the machine tool building industry, in the processing industry or in the shipbuilding industry.

Murrelektronik's power supply units have many approvals and feature a wide input voltage range, which makes them suitable for global applications. Comprehensive product range with switch mode power supplies, transformers, buffer modules, redundancy modules, load circuit monitoring and much more. High flexibility with the right model for your needs. 100 % compatible. For global applications. Durable units ensures system availability.

Additional Info

Brand Murrelektronik
Component Type Switching Power Supply
Connection Screw Terminal
Input Voltage 95-265V AC
Murr Product Series Murrelektronik MPS
Operating Current 3A
Output Voltage 24V DC
