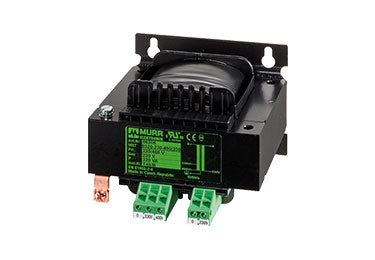

Image may not be representative of actual product.
Input voltage: 230/400 V AC
Frequency: 50 - 60 Hz
Inrush current: 66 A (230 V AC); 38 A (400 V AC)
Short-circuit current: 148 A (230 V AC); 85 A (400 V AC)
Input current: 4.73 A (230 V AC); 2.72 A (400 V AC)
Standards: EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage: 4 kV (prim./sec.)
Mounting method: Key-hole mounting
Temperature range: -20 - 40 degrees Celsius (storage temperature -40 - 80 degrees Celsius)
Dimensions H x W x D: 128x174x160 mm
Fixing centers a x b x c: 102x135x7 mm
Drill hole diameter: 7x11 mm
Output voltage: 230 V AC
Output rating: 1000 VA
Different situations require different voltages. Transformers have to be just as flexible as the application. Murrelektronik's range provides you with the flexibility you need! No matter if it's an isolation transformer, control transformer, or safety transformer - Murr has the right solution for any application. Murrelektronik's transformers are reliable, safe and their approvals and voltage ranges make them ideal for worldwide use.
Murrelektronik Transformers Advantages:
Approvals for the global market
Flexible and versatile
Customized solutions
**Additional shipping cost may apply**
Frequency: 50 - 60 Hz
Inrush current: 66 A (230 V AC); 38 A (400 V AC)
Short-circuit current: 148 A (230 V AC); 85 A (400 V AC)
Input current: 4.73 A (230 V AC); 2.72 A (400 V AC)
Standards: EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage: 4 kV (prim./sec.)
Mounting method: Key-hole mounting
Temperature range: -20 - 40 degrees Celsius (storage temperature -40 - 80 degrees Celsius)
Dimensions H x W x D: 128x174x160 mm
Fixing centers a x b x c: 102x135x7 mm
Drill hole diameter: 7x11 mm
Output voltage: 230 V AC
Output rating: 1000 VA
Different situations require different voltages. Transformers have to be just as flexible as the application. Murrelektronik's range provides you with the flexibility you need! No matter if it's an isolation transformer, control transformer, or safety transformer - Murr has the right solution for any application. Murrelektronik's transformers are reliable, safe and their approvals and voltage ranges make them ideal for worldwide use.
Murrelektronik Transformers Advantages:
Approvals for the global market
Flexible and versatile
Customized solutions
**Additional shipping cost may apply**
Additional Info
| Brand | Murrelektronik |
|---|---|
| Component Type | Control and Isolation Transformer |
| Murr Product Series | Murrelektronik MST |
| Output Voltage | 230V AC |
| Power | 1000VA |
