Input voltage: 230/400 /-15 V AC
Input current: 4.6 A (230 V AC); 2.6 A (400 V AC)
Inrush current: 83 A (230 V AC); 42 A (400 V AC)
Short-circuit current: 147 A (230 V AC); 86 A (400 V AC)
Frequency: 50 - 60 Hz
Standards: EN 61558-1, EN 61558-2-4, EN 62041 category 0
Test isolation voltage: 5.8 kV (prim./sec.)
Mounting method: Key-hole mounting
Fixing centers a x b x c: 134x122x7 mm
Dimensions H x W x D: 156x150x197 mm
Drill hole diameter: 7x11 mm
Temperature range: -20 - 40 degrees Celsius, no condensation
Output voltage: 1 x 24, 1 x 48, 2 x 24 V AC
Output rating: 1000 VA

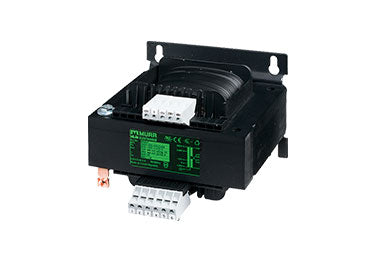

Different situations require different voltages. Transformers have to be just as flexible as the application. Murrelektronik's range provides you with the flexibility you need! No matter if it's an isolation transformer, control transformer, or safety transformer - Murr has the right solution for any application. Murrelektronik's transformers are reliable, safe and their approvals and voltage ranges make them ideal for worldwide use.

Murrelektronik Transformers Advantages:
Approvals for the global market
Flexible and versatile
Customized solutions

Additional Info

Brand Murrelektronik
Component Type Safety Transformer
Input Voltage 230-400V AC
Murr Product Series Murrelektronik MST
Output Voltage 24V AC
Power 1000VA
